Tilley lamps

살아있다!

20살때 MT가서 쓰던 놈 이었는데....

그동안 고향 집 뒤주 속에서10년,

또 10년을 기둥에 매달려 있던 놈 이었다.

아무도 봐 주지 않고 쓸쓸히 붉은 쇠옷으로 덥혀 가던 놈 이었는데....

이제서야 그 가치를 알고 주인과 재회 했다.

23년 전 너를 처음 본거 같구나. 반갑다!

이제부터 그 동안 못다 한 사랑을 해 주꾸마!

 Tilley lamps....한번 점등 해 두면 밤새..아침에 일어나도 불을 밝히고 있던 놈이었다.

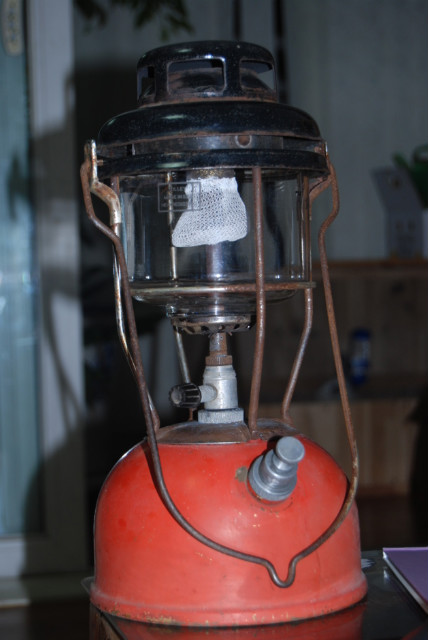

              Tilley Stormlight X246B-R



막내도 좋아한다. 이 기분 알려나?



석유(Kerosene) 가득넣고 시운전 한후.... 무겁냐?



처마 밑 기둥에 매달려 갈아 입은 붉은 옷! 사포로 닦는다고 닦은게...이정도..!

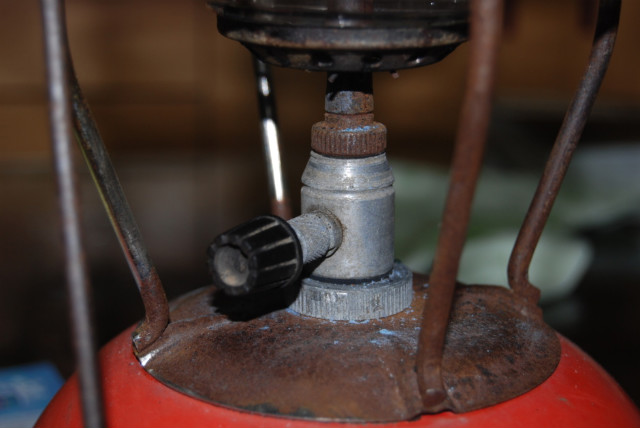

Control Cock 또한 잘 작동 된다. 살아있음을 확인한다.(예열 할때 떨어진 파란 고체연료 가루가 있네...)



펌프 손잡이도 닦고...펌핑이 안될까 걱정했는데....세월의 풍파에도 끄덕 없다! 부품에 전혀 이상이 없다.

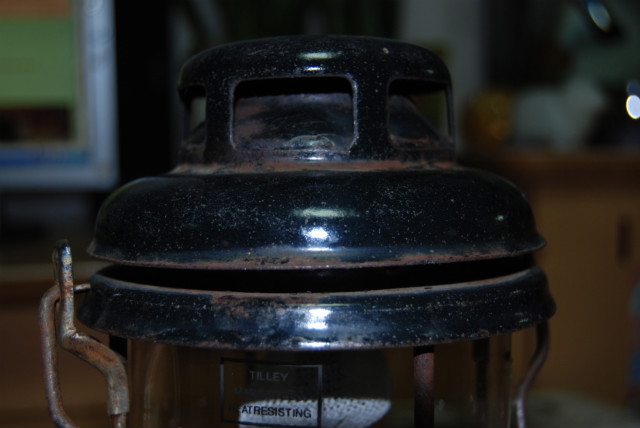

Hood 법랑에 붉은 꽃이 피었지만 지장 없다! Vaporiser 또한 잘 작동 된다.



지금은  알콜 예열기가 없다! 예전에 있었던 기억이 난다. 쉬운 예열 방법을 잠시 골몰하다......드디어 찾았다!

유리 밑 벌래 방지망(Insect Shield)으로 고체 연료를 얹고 불을 붙혀 예열을 해 보았다. 결과는 대성공!

점등 잘 된다^^^야호~~!

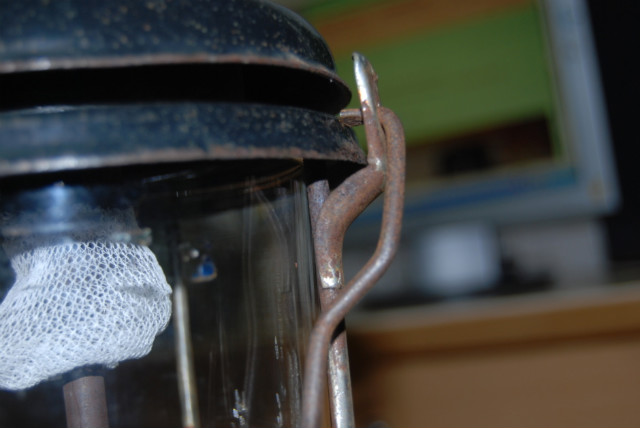

제일 심하게 녹이 발생하였으나 사포로 닦아보니 아무 이상 없다!

(이 부분 때문에 그동안 아무도 거들더 보지 않았으리....삭아서 떨어질줄 알았는데...)

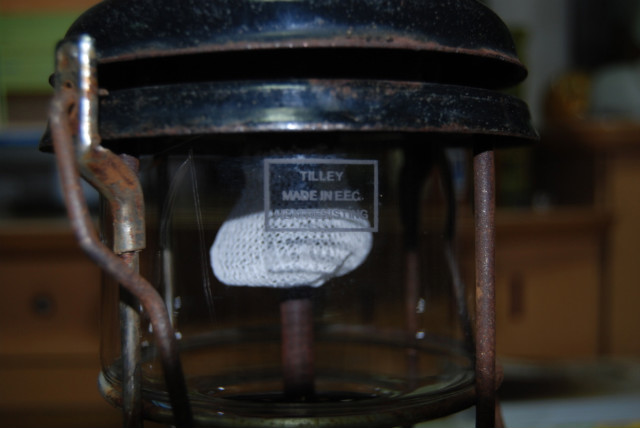

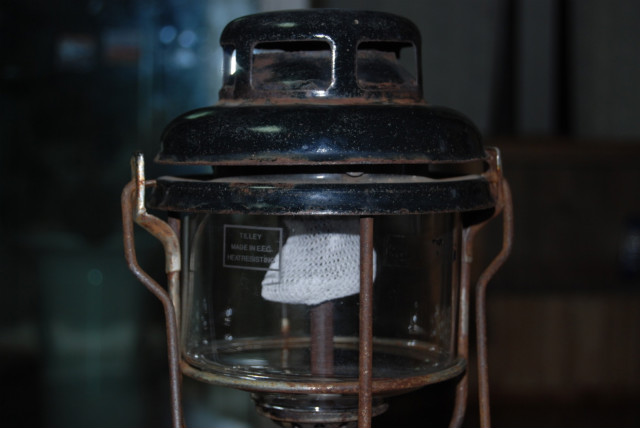

유일하게 상표가 남아 있는 부분이다.Made in EEC(European Economic Community)로 적혀 있다. 영국에서 만들었겠지...?!

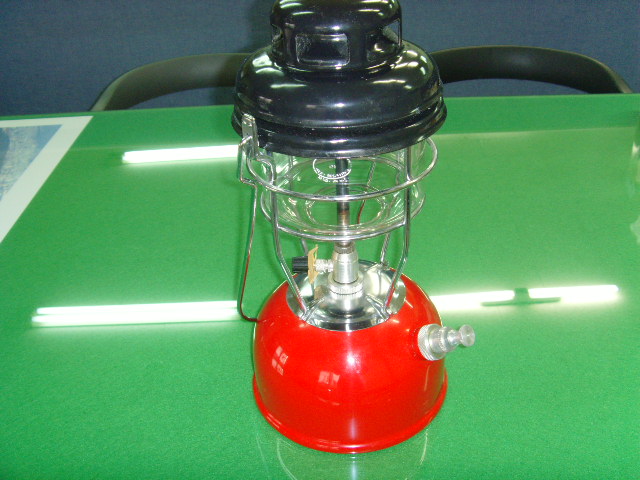

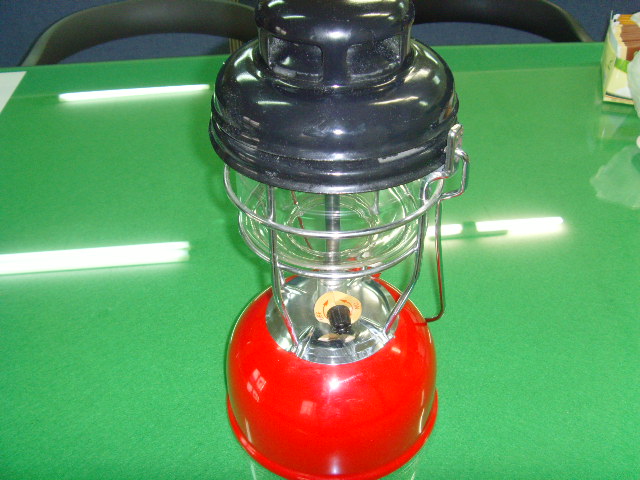

£109.99(약 110파운드)로 지금 Tilley 홈피에서 팔리나 보다. * 영국 (GBP)-> 1파운드 = 2043.31원(2008,09,17현재)

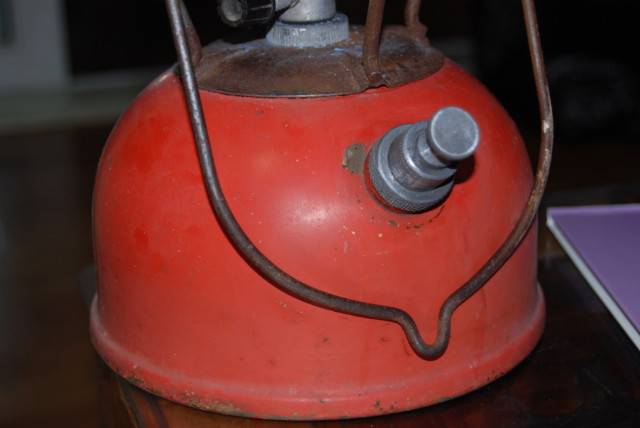

기름통(Container)이 동으로 되어 있다. 녹슬어 구멍 이라도 난 줄 알았는데... 제일 멀정하다!



생전 모습을 담았어야 하는데.....! 九死一生 했다!

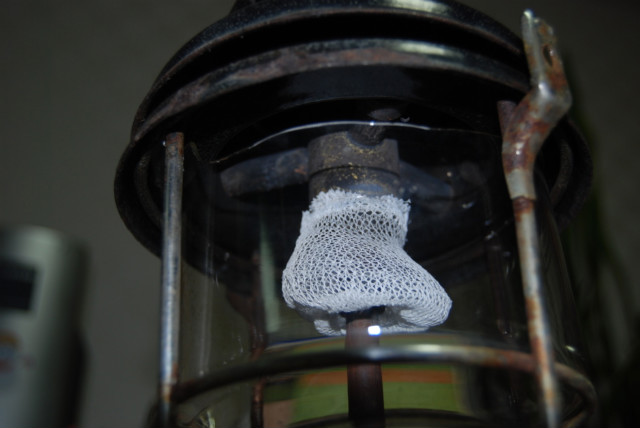

Mantle은 코베아 갤럭시 꺼로 달았다.좀 크다. 모양이 제대로 안나와 불이 좀 약하다. 좀더 연구 해야 겠다.

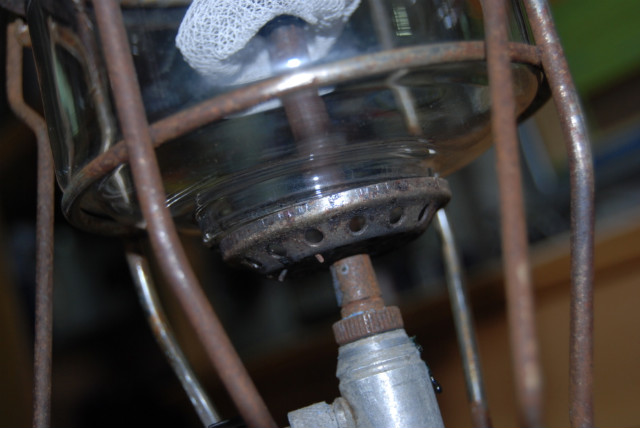

Mantle위 Bunner 또한 동 재질이어서 아무 문제 없다.

20대 때 등산가서 유리(Globe) 가장자리를 약간 깬 기억이 난다...... 지금도 사용하는데 전혀 지장이 없다.



그동안 잊고있던 추억 하나가 당당히 자리를 잡았다! 추억을 품는 것은 골동품을  만지는 거 아닐까...! 이놈이 있어 좋다!



http://www.youtube.com/watch?v=GpfDz5AH89k

http://www.youtube.com/watch?v=wfoOD1jUAMA&feature=related<-- 예열(점화) 동영상

Tilley lamps

Posted on December 18th, 2006 in Being prepared by chris









For brief power outages candles or battery torches are a quick and convenient means of providing emergency lighting, but if the power is off for more than an hour or two their shortcomings soon become apparent.  one of the biggest drawbacks is that these light sources cannot compete with mains lighting for providing sufficient illumination to read a book, do homework, cook a meal, etc.  For these tasks one requires a brighter lamp, and one of my solutions to this problem is the paraffin Tilley storm lamp.

Tilley lamps have been made for decades and their design is so good that there have been few modifications over the years.  They are still made and can be bought online from the manufacturer’s website, currently priced at between £90 and £100 depending upon choice of colour.  If this is too expensive secondhand models are available at much more reasonable prices on eBay although these will often be missing the instructions (I have reproduced the sections on lighting and extinguishing the lamp below), the clip-on methylated spirit lighting torch (which is essential), and the funnel to fill the tank (which is not essential but makes the job easier).  Spare parts are easily available from the Tilley website.









Lighting the lamp is a two-stage process and is not as quick as lighting a candle or switching on a battery lantern.  However once alight the Tilley gives out a bright, steady light that can illuminate a typical domestic room, and it burns for about 12 hours on a single tank of paraffin (about 1½ pints).  The lamp burns paraffin vapour on a mantle that is protected by a Pyrex glass globe, and therefore the lamp can be used out of doors on a windy night without blowing out.  The first picture above shows a Tilley lamp with the pre-heater meths torch in position and alight.  The meths burns for about two minutes, heating the vaporizer tube.  Then, when the paraffin is turned on the mantle lights and the meths torch is removed.  The second photograph shows a Tilley lamp with the meths torch removed and the mantle glowing normally.

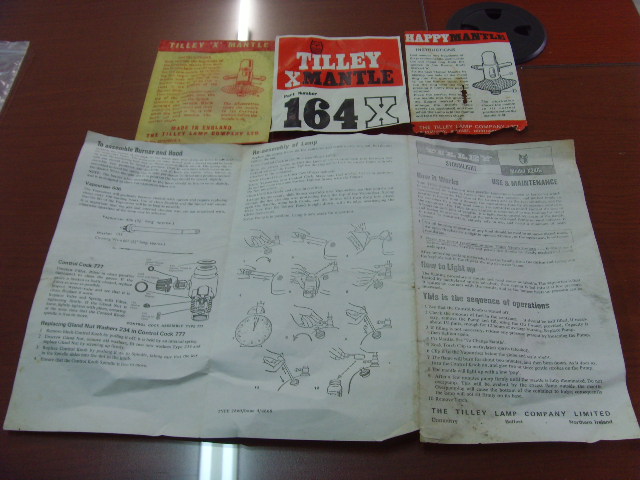

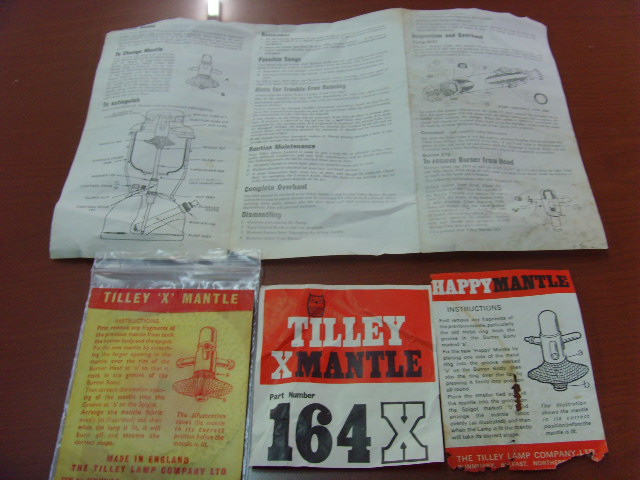

For the benefit of those who have lost the instructions, here is the description of how to light and extinguish the lamp, as described in the sheet that came with my Tilley lamps:

Lighting Instructions
I. Turn off control knob (clockwise).
2. Remove pump and fill, using only clean paraffin (kerosene) and a funnel fitted with a filter, to a level just below the pump opening. Capacity about 1½ pints (0.86 litres).
3. If filling is not required, ensure any pressure is released by loosening the pump. Tighten again. This is important, otherwise the lamp will not light correctly.
4. Fill a small jar, or the bottle provided, with methylated spirits (alcohol). Soak the torch cup by immersing it in the methylated spirits (alcohol) and then clip it to vaporiser below the glass globe. Light the torch. If using an insect shield, press it down away from glass to allow entry of torch cup. At this point the new mantle will ‘Burn off’ and produce a yellow flame from out of the hood.
5. The torch will burn for about two minutes. Before it burns out. turn on the control knob (anti-clockwise) and pressurise slightly by giving eight strokes of the pump. The mantle will light up with a low ‘pop’.
6. After 30 seconds pump firmly until the mantle is fully illuminated. About 90 pumps are normally sufficient for a full container. If the container is not full - 1½ pints (0.86 litres), then more pressure will be required - the less fuel, the more pumps!
NOTE: Periodic pumping is necessary to maintain a bright light. About 40 pumps each hour.
7. Remove torch and when cool replace in methylated (alcohol) bottle.

To extinguish
1. Turn the control knob off (clockwise).
2. Always release the pressure by loosening the pump, tighten again.
NOTE: After burning the lamp for the first time, slightly tighten the gland nut on the control cock by turning it clockwise.

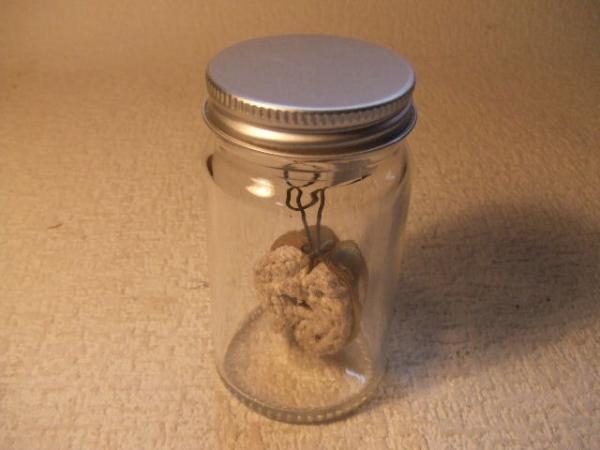

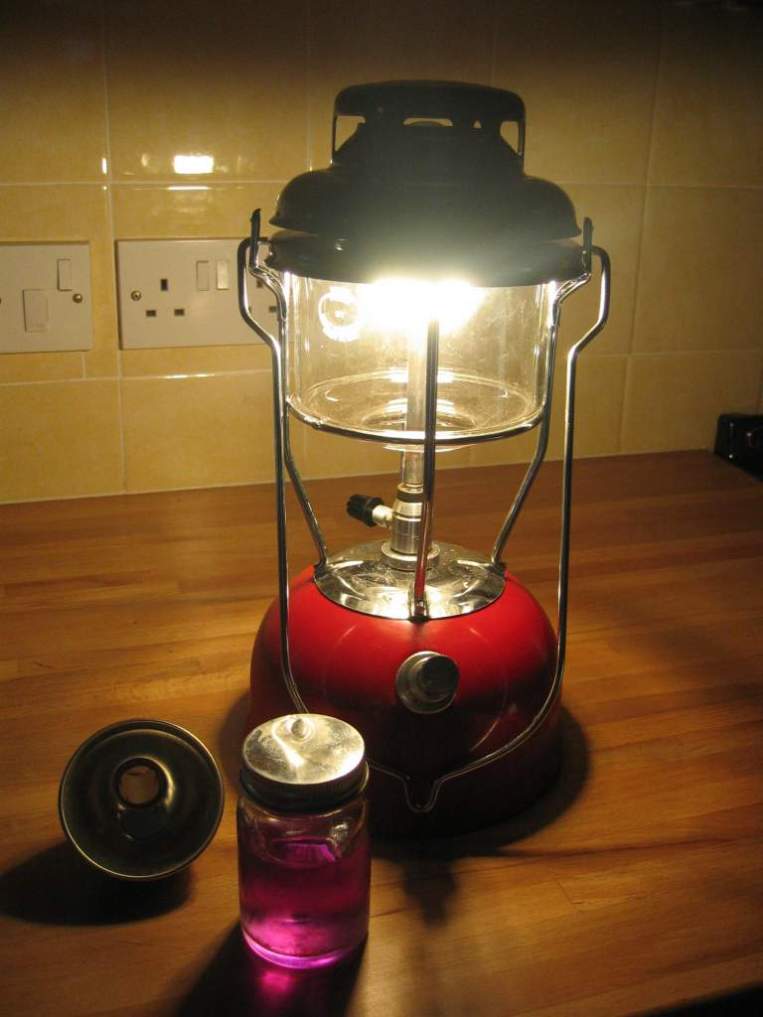

I keep my Tilley lamps filled up and ready to use, together with the glass jars of methylated spirits in which the preheater torch is kept.  It is necessary to keep a small stock of paraffin and meths, and advisable to have one or two spare mantles.  Note that a Tilley lamp can run perfectly well on domestic heating oil as an alternative to paraffin, but under no circumstances should petrol (gasolene) be used.

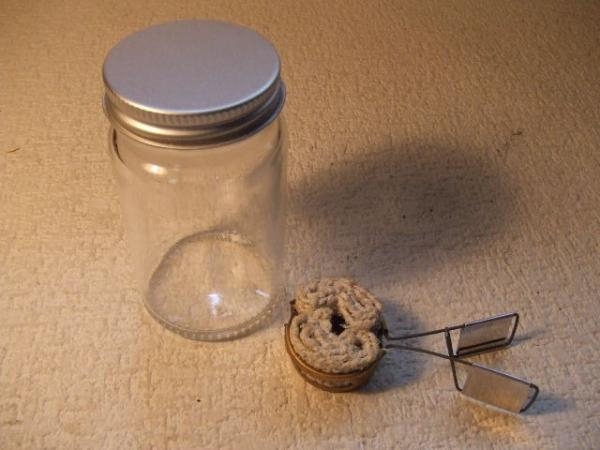

예열기

















PHONE: +44 (0)1483 579243



Tilley Lamp Spare Parts

The following is a comprehensive list of spare parts available currently by direct mail order or via the web. Click here for online shopping and current prices. Spares for old and rare lamps are also available to order. Please contact us to discuss your requirements.

Occasional maintenance and renewal of parts will ensure that your lamp continues to provide efficient and reliable service indefinately. Of course if you are unsure of anything regarding the maintenance of your lamp please contact us.

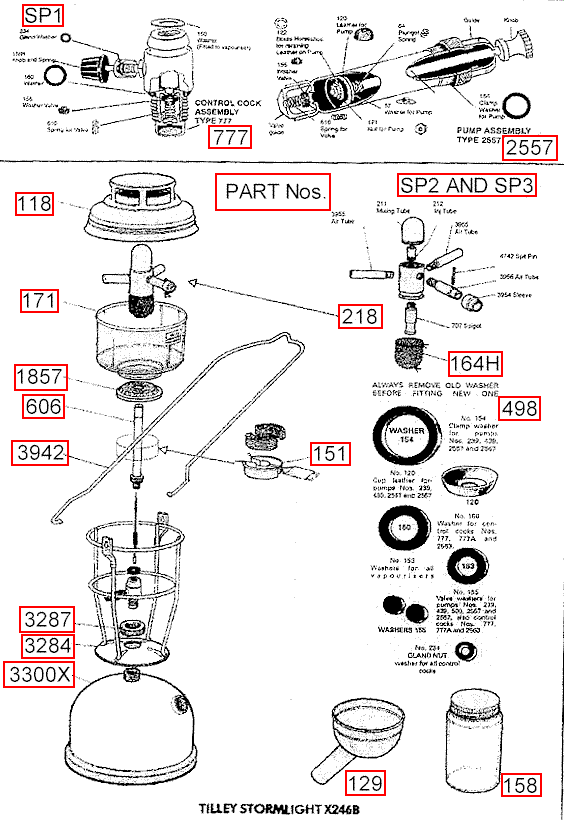

For a diagram showing the parts and their location in the lamp please click:
Parts diagram



Spares	Part No.	Description
Stormlight - Red	X246B-R	Stormlight - Red Paraffin Pressure Lamp
Stormlight - Bright Polished Brass	X246B-B	Stormlight - Bright Polished Brass Paraffin Pressure Lamp - New Y2K look for the Stormlight
Stormlight - Chrome	X246B-C	Stormlight - Chrome Paraffin Pressure Lamp
Hood	118	Hood For Stormlight
Globe	171	Globe For Stormlight
Insect Shield	1857	Insect Shield For Stormlight
Vaporiser	606	5" Vaporiser & For 500 Series
Handle	3942	Handle For Stormlight
Nut for Frame	3287	Nut for Frame For Stormlight
Carrying Frame	3284	Carrying Frame For Stormlight
Container	3300X	Container For Stormlight
Burner	218	Burner For Stormlight
Happy Mantle	164H	Happy Mantle Ring Type Mantle
Cord Mantle	164X	Cord Mantle Cord Type Mantle
Pre Heating Torch	151	Pre Heating Meths Torch
Control Cock	777	Control Cock For Stormlight
Pump	2557	Pump For Stormlight
Funnel	129	Funnel For Stormlight
Spirit Bottle	158	Spirit Bottle - for Meths
Service Pack 1	SP1	Service Pack 1 Washers and Springs
Service Pack 2	SP2	Service Pack 2 Air Tube, Sleeve Split Pin
Service Pack 3	SP3	Service Pack 3 Mixing and Injector, Spigot
Washer Set	498	Washer Set Washers and leather
Vaporiser	169	7 inch Vaporiser
Globe	182	Globe For Table Lamp
Plunger	2561	Plunger For Stormlight
Pump Leather	120	Pump Leather For Stormlight
Cord Mantle	164X-5	Cord Mantle For 500 Series
Burner	218-5	Burner For 500 Series
Container	3500X-5	Container For 500 Series
Versatile Vapour Lamp	VVL1	Versatile Vapour Lamp - An excellent book by Jim Dick



For a diagram showing the parts and their location in the lamp please click below:
Storm Lamp

Please note these are large pictures and may take several minutes to download depending on your connection speed

Note:

Postage and Packing: (indicative prices - the actual price will be shown when ordering on-line in the shop)

- Small items - £3.00
- Glass products - £6.00
- Lamps - £12.50

--------------------------------------

PHONE: +44 (0)1483 579243 전화 번호 : +44 (0) 1,483 ,579,243

Tilley Lamp Spare Parts 테리 램프 스페어 부품

The following is a comprehensive list of spare parts available currently by direct mail order or via the web. 다음은 현재 사용할 수 스페어 부품 포괄적인 목록을 직접적으로 메일을 통해 주문을하거나 웹합니다. Click here for online shopping and current prices. 보시려면 여기를 클릭하세요 온라인 쇼핑과 현재 가격을합니다. Spares for old and rare lamps are also available to order. 오래된 희귀 부품을 주문 램프도있습니다. Please contact us to discuss your requirements. 문의하시기 바랍니다 귀하의 요구 사항을 논의합니다.

Occasional maintenance and renewal of parts will ensure that your lamp continues to provide efficient and reliable service indefinately. 비정기 유지 보수 및 업데이트 램프의 부품이 있는지 확인하십시오 효율적이고 안정적인 서비스를 계속해서 무기한으로 제공합니다. Of course if you are unsure of anything regarding the maintenance of your lamp please contact us. 물론 아무것도 알 수없는 경우에는 귀하의 램프의 유지 관리와 관련하여 문의하시기 바랍니다.

For a diagram showing the parts and their location in the lamp please click: 다이어그램을위한 부품 및 그들의 위치를 보여주는 램프를 클릭하시기 바랍니다 :
Parts diagram 부품 다이어그램

Spares 예비	Part No. 부품 번호	Description 설명
Stormlight - Red stormlight - 레드	X246B-R - 연구 x246b	Stormlight - Red Paraffin Pressure Lamp stormlight - 레드 파라핀 압력 램프
Stormlight - Bright Polished Brass stormlight - 밝은 쉬드 금관 악기	X246B-B x246b - b	Stormlight - Bright Polished Brass Paraffin Pressure Lamp - New Y2K look for the Stormlight stormlight - 밝은 쉬드 금관 악기 파라핀 압력 램프 - 새로운 stormlight을 찾아 2000 년
Stormlight - Chrome stormlight - 크롬	X246B-C x246b - c	Stormlight - Chrome Paraffin Pressure Lamp stormlight - 파라핀 압력 램프 크롬
Hood 두건	118 118	Hood For Stormlight 두건에 대한 stormlight
Globe 지구본	171 171	Globe For Stormlight 지구본을 stormlight
Insect Shield 곤충의 방패	1857 1857	Insect Shield For Stormlight 곤충의 방패에 대한 stormlight
Vaporiser vaporiser	606 606	5" Vaporiser & For 500 Series 5 "vaporiser &에 대한 500 시리즈
Handle 손잡이	3942 3942	Handle For Stormlight 핸들을 stormlight
Nut for Frame 너트에 대한 프레임	3287 3287	Nut for Frame For Stormlight 너트에 대한 프레임 stormlight
Carrying Frame 운반 프레임	3284 3284	Carrying Frame For Stormlight 장부에 대한 프레임 stormlight
Container 컨테이너를	3300X 3300x	Container For Stormlight 컨테이너를 stormlight
Burner 버너	218 218	Burner For Stormlight 버너에 대한 stormlight
Happy Mantle 행복 맨틀	164H 164h	Happy Mantle Ring Type Mantle 행복 맨틀 링 타입 맨틀
Cord Mantle 코드를 맨틀	164X 164x	Cord Mantle Cord Type Mantle 코드를 코드를 입력 맨틀 맨틀
Pre Heating Torch 사전 난방 장치 토치	151 151	Pre Heating Meths Torch 사전 난방 meths 토치
Control Cock 컨트롤 수탉	777 777	Control Cock For Stormlight 수탉에 대한 통제 stormlight
Pump 펌프	2557 2557	Pump For Stormlight 펌프를 stormlight
Funnel 깔때기	129 129	Funnel For Stormlight 깔때기에 대한 stormlight
Spirit Bottle 정신 병	158 158	Spirit Bottle - for Meths 정신 병 - meths
Service Pack 1 서비스 팩 1을	SP1 SP1을	Service Pack 1 Washers and Springs 서비스 팩 1을 와셔 및 스프링스
Service Pack 2 서비스 팩 2를	SP2 SP2를	Service Pack 2 Air Tube, Sleeve Split Pin 서비스 팩 2를 공기 튜브, 소매를 분할 핀
Service Pack 3 서비스 팩 3	SP3 SP3을	Service Pack 3 Mixing and Injector, Spigot 서비스 팩 3을 혼합, 인젝터, 꼭지
Washer Set 와셔 세트	498 498	Washer Set Washers and leather 와셔 세트, 가죽 와셔
Vaporiser vaporiser	169 169	7 inch Vaporiser 7 인치 vaporiser
Globe 지구본	182 182	Globe For Table Lamp 테이블에 대한 글로브 램프
Plunger 플런저	2561 2561	Plunger For Stormlight 플런저를 stormlight
Pump Leather 펌프 피혁	120 120	Pump Leather For Stormlight 펌프 피혁에 대한 stormlight
Cord Mantle 코드를 맨틀	164X-5 164x - 5	Cord Mantle For 500 Series 500 시리즈에 대한 코드를 맨틀
Burner 버너	218-5 218-5	Burner For 500 Series 버너에 대한 500 시리즈
Container 컨테이너를	3500X-5 3500x - 5	Container For 500 Series 컨테이너를 500 시리즈
Versatile Vapour Lamp 다용도 램프 수증기	VVL1 vvl1	Versatile Vapour Lamp - An excellent book by Jim Dick 다용도 수증기 램프 - 한 우수한 도서를 짐 딕

For a diagram showing the parts and their location in the lamp please click below: 다이어그램을위한 부품 및 그들의 위치를 보여주는 램프 아래를 클릭하세요 :
Storm Lamp 스톰 램프

Please note these are large pictures and may take several minutes to download depending on your connection speed 이들은 큰 그림과 참고하시기 바랍니다은 몇 분 정도 걸릴 수있습니다 연결 속도에 따라 다운로드

Note: 참고 사항 :

Postage and Packing: (indicative prices - the actual price will be shown when ordering on-line in the shop) 우표, 포장 : (지표 가격 - 주문을 때의 실제 가격이 표시됩니다 - 라인에 상점)

- Small items - £3.00 - 작은 상품 - £ 3.00
- Glass products - £6.00 - 유리 제품 - £ 6.00
- Lamps - £12.50 - 램프 - £ 12.50





https://www.iimsec.co.uk/tilley/shop.php?stat=1 Tilley Lamp Shop //-->

---

Please see our Terms and Conditions for our Terms and Conditions of sale, Contact Information and Returns & Refunds information

---

There are no items in your cart

	Bright Polished Brass Stormlight A bright polished brass Tilley Paraffin Pressure Lamp Product code: X246B-B	Price: £109.99 Quantity
	Red Enamelled Stormlight A red enamelled Tilley Paraffin Pressure Lamp Product code: X246B-R	Price: £109.99 Quantity
	Chromium plated Stormlight A chromium plated Tilley Paraffin Pressure Lamp Product code: X246B-C	Price: £109.99 Quantity
	Hood Hood for Stormlight Product code: 118	Price: £27.99 Quantity
	Globe Glass Globe for Stormlight Product code: 171	Price: £29.99 Quantity
	Insect shield Insect shield for Stormlight Product code: 1857	Price: £7.99 Quantity
	Vaporiser 5inch Vaporiser Product code: 606-S	Price: £17.99 Quantity
	Handle Handle for Stormlight Product code: 3942	Price: £5.50 Quantity
	Frame nut Nut for frame on Stormlight Product code: 3287	Price: £1.99 Quantity
	Carrying Frame Carrying Frame for Stormlight Product code: 3284	Price: £19.99 Quantity
	Container Paraffin container for Stormlight Product code: 3300X	Price: £49.99 Quantity
	Burner Burner for Stormlight Product code: 218-S	Price: £26.99 Quantity
	Happy Mantle Ring type mantle for Stormlight series lamps Product code: 164H	Price: £1.50 Quantity
	Cord Mantle Cord type mantle for Stormlight series lamps Product code: 164X-S	Price: £1.30 Quantity
	Pre-heating torch Meths torch for pre-heating Product code: 151	Price: £6.99 Quantity
	Control cock Control cock for Stormlight series lamps Product code: 777	Price: £15.99 Quantity
	Pump Pump for Stormlight series lamps Product code: 2557	Price: £19.99 Quantity
	Funnel Paraffin funnel for filling tank Product code: 129	Price: £6.50 Quantity
	Spirit bottle Container for methelated spirits Product code: 158	Price: £3.99 Quantity
	Service pack 1 A set of washers and springs Product code: SP1	Price: £6.99 Quantity
	Service pack 2 Service pack containing - 2 Air tubes - Sleeve - Split pin Product code: SP2	Price: £11.99 Quantity
	Service pack 3 Service pack containing - Mixing tube - Injector tube - Spigot Product code: SP3	Price: £14.99 Quantity
	Washer set Set of washers and a pump leather Product code: 498	Price: £3.99 Quantity
	Vaporiser 7inch Vaporiser Product code: 169	Price: £18.99 Quantity
	Globe Glass globe for table lamp Product code: 182	Price: £29.99 Quantity
	Plunger Plunger for Stormlight Product code: 2561	Price: £8.99 Quantity
	Pump leather Pump leather for Stormlight Product code: 120	Price: £0.90 Quantity
	Cord Mantle Cord type mantle for 500 series lamps Product code: 164X-500	Price: £1.50 Quantity
	Tilley The Versitile Vapour Lamp An excellent book by Jim Dick on the history of Tilley Lamps Product code: VVL1	Price: £12.99 Quantity
